sliding glass door weatherstripping: types and replacement basics

Sliding glass door weatherstripping must match the door’s original seal location, profile, size, and attachment method to reduce airflow without interfering with movement. A sliding patio door may use several different seals around the moving panel, meeting stile, stationary panel, jambs, and frame.

The correct replacement must provide the intended contact or compression while fitting the door’s material and design. A generic strip that is too thick, too tall, or installed in the wrong location can make the panel difficult to slide, prevent the lock from engaging, or block drainage openings.

Weatherstripping type	Common sliding-door use	Main matching concern
Pile or brush seal	Panel edges, jambs, and meeting areas	Backing width, pile height, density, and channel size
Fin-pile seal	Sliding contacts needing added airflow resistance	Fin position, pile height, and contact direction
Bulb or compression seal	Jambs and closed-position contacts	Bulb diameter, base shape, and compression
Vinyl or rubber flap	Panel edges and selected frame contacts	Profile, flexibility, orientation, and clearance
Interlocking meeting seal	Overlap between moving and stationary panels	Door-specific shape and panel alignment
Adhesive-backed foam	Limited stationary compression locations	Thickness, surface compatibility, and clearance

What Sliding-Door Weatherstripping Does

Weatherstripping reduces airflow where movable door parts meet. Depending on the design, it may brush lightly against another surface or compress when the panel reaches its fully closed position.

A properly fitted seal should allow the door to slide, close, latch, and lock without unusual force. It may also reduce dust and minor outside noise, but it should not be confused with caulk. Weatherstripping seals moving contacts, while caulk is generally used at fixed, nonmoving joints around a frame.

Replacement weatherstripping cannot repair failed rollers, severe panel misalignment, bent tracks, broken locks, damaged frames, loose glass, rotten materials, or structural movement. It also should not be treated as a cure for water intrusion. Rainwater entering the home may point to blocked drainage, damaged frame components, failed exterior joints, or installation problems that require a broader evaluation.

Common Types of Sliding Glass Door Weatherstripping

Pile or brush weatherstripping

Pile weatherstripping consists of dense fibers attached to a narrow backing strip. It is commonly installed in a channel along the edges of a moving panel, at a jamb, or near the meeting point between panels.

The backing must fit the channel securely without being forced. Pile height and density determine how well the fibers contact the opposing surface. Pile that is too short may not touch the door or frame. Pile that is too tall or dense may create drag, bunch during movement, or prevent full closure.

Measure more than the overall thickness. Backing width, pile height, fiber density, channel fit, and the amount of contact all affect performance.

Fin-pile weatherstripping

Some pile seals include a flexible plastic fin through the center of the fibers. This fin can improve resistance to airflow while the surrounding pile allows the panels to move against each other.

A replacement should match the backing width, pile height, fin height, fin position, and direction of contact. An ordinary brush seal may look similar but may not fit or perform like the original fin-pile material.

Check which way the fin faces before removing the old strip. Installing it backward can reduce contact or make the seal fold during operation.

Bulb and compression seals

Bulb, tube, rubber, vinyl, and silicone profiles are designed to compress as the door reaches the closed position. They may be found at a side jamb, head jamb, or another location where the panel presses against the frame.

Important details include the bulb diameter, wall thickness, base shape, mounting groove, orientation, and intended compression. An oversized bulb may keep the panel from closing or locking. An undersized bulb may barely touch the opposing surface and leave the original gap.

The seal should compress enough to make contact without being crushed flat or requiring extra force at the handle.

Flap, leaf, and flexible vinyl seals

Some patio doors use a flexible flap, leaf, or fin-shaped seal that bends against another surface. These profiles often depend on their direction and angle, not only their thickness.

A replacement flap should face the same way as the original and flex smoothly as the panel moves. It should not fold under itself, rub against a roller path, or extend into the track.

Interlocking meeting-stile seals

The overlapping vertical sections where the sliding and stationary panels meet may use shaped interlocks, weatherstripping, or both. These parts help close the gap between the panels while allowing them to pass each other during operation.

Meeting-stile components are often specific to the door design. A generic strip may not reproduce the original overlap, clearance, or locking relationship. Identifying the manufacturer, model number, or exact original profile may be necessary.

Do not remove a stationary glass panel or dismantle the meeting stile to reach a hidden seal. That work can involve heavy glass, retainers, and alignment requirements better handled by a door professional.

Adhesive-backed foam tape

Adhesive foam may work at certain accessible compression locations when the original design allows enough clearance. It is not a universal substitute for channel-mounted pile, bulb seals, or interlocking components.

Foam tape can lose adhesion, remain permanently compressed, trap moisture, damage a finished surface, or wear quickly in a high-use location. Material that is too thick may prevent the door from closing or locking. It may also peel loose and enter the track.

Use it only where the door closes against a stationary surface and where its thickness will not interfere with normal movement, hardware, or drainage.

Signs the Existing Seal Needs Replacement

Visible damage is often the clearest reason to replace an accessible seal.

Common signs of failure

• Sections are missing, loose, or pulling out of a channel.
• Pile fibers are flattened, matted, torn, or no longer touching.
• A center fin is split, bent, or missing.
• Rubber, vinyl, or silicone has become cracked, hard, or brittle.
• A compression bulb stays flattened instead of rebounding.
• Adhesive backing has released, or the strip has shifted.
• Shrinkage has left gaps at corners or strip ends.
• The material bunches, drags, or enters the track.

Daylight or repeatable airflow at a location that should seal can also indicate poor contact. However, worn-looking material is not always the only problem.

Look at the gap from top to bottom. If the seal contacts firmly near one end but misses the opposing surface at the other, the panel may be crooked or misaligned. Replacing the strip with a taller one can create heavy drag at the tight end without correcting the wider gap.

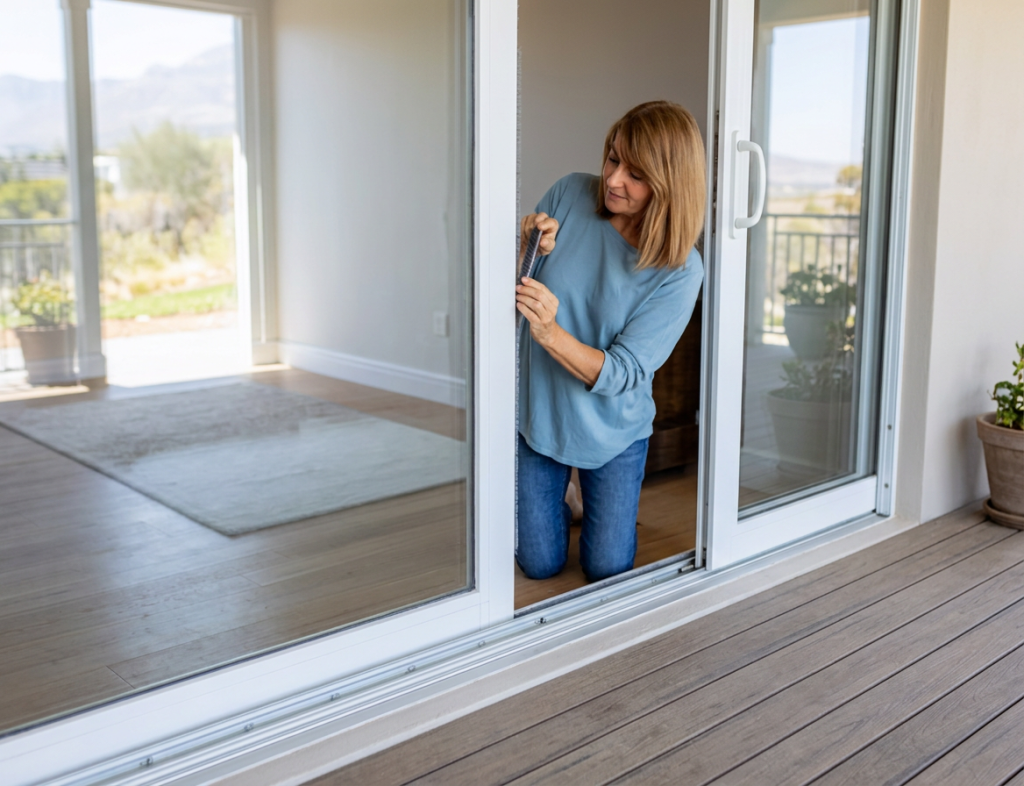

How to Match Replacement Weatherstripping

The safest approach is to match the original profile instead of choosing a strip based only on appearance.

Record the location and orientation

Identify whether the seal is installed on the moving panel, side jamb, head jamb, bottom edge, meeting stile, stationary panel, or fixed frame section. Photograph the material from several angles before removing anything.

Include nearby hardware, channels, and the direction the seal faces. These details can help distinguish two profiles that look similar after removal.

Remove only an accessible sample

A short sample may sometimes slide out of a channel or lift from an accessible adhesive-backed location. Keep it intact for comparison.

Stop if removal requires lifting the glass panel, loosening retainers, prying near glass, dismantling the stationary panel, or removing the door from its track. Hidden seals are not appropriate beginner replacement projects.

Measure the profile carefully

Depending on the seal, record the backing width, channel or kerf width, pile height, fin height, bulb diameter, flap width, base shape, and overall thickness.

Worn material may not show its original dimensions accurately. Pile can become flattened, bulbs can remain compressed, and stretched strips can shrink after removal. A door label, model number, manufacturer diagram, or supplier that matches physical samples may be more reliable than one measurement from badly damaged material.

Match the attachment method

Common attachment methods include slide-in channels, kerfs or grooves, adhesive backing, clips, fasteners, and door-specific retainers.

Do not convert a channel-mounted seal to an adhesive strip, or replace a retained profile with foam, without confirming that the change is compatible. The original mounting method usually provides the best guide to how the replacement should fit and move.

Basic Replacement Process

Keep the work limited to weatherstripping that is fully accessible without moving heavy glass or dismantling structural door components.

Prepare the door and work area

Close and secure the door when practical. Confirm that the panel is stable and that the replacement matches the sample before removing the complete old strip.

Note the seal’s direction, starting point, and corner arrangement. Check for nearby weep holes, track channels, locks, and service openings that must remain clear.

Remove accessible old material

Loose adhesive-backed material or a simple channel-mounted strip may be removed carefully when it is reachable from the installed door.

Do not pull forcefully, pry against the glass, loosen panel retainers, or lift the door. If the strip will not release with gentle handling, stop and determine whether it is fastened or retained by another component.

Clean the mounting area

Remove loose dirt, old fibers, and adhesive residue using methods compatible with the frame material. The surface must be clean and dry before installing adhesive-backed material.

Avoid aggressive scraping and strong solvents that could scratch finishes, soften plastics, damage nearby seals, or disturb older coatings. Test any cleaner in a small, hidden area when its compatibility is uncertain.

Install the replacement in its natural length

Seat the material straight and in the same orientation as the original. Do not stretch it tight during installation. Stretched weatherstripping may contract later and leave open ends or corner gaps.

Channel-mounted backing should sit fully in the channel without twisting. Flaps and fins should face the correct direction. Adhesive-backed material should be pressed onto a clean surface without being pulled lengthwise.

Trim the ends using an appropriate safe cutting method on a stable work surface. The strip should meet adjoining seals without a large gap, excessive overlap, or bunching.

Test the completed installation

Open, close, and lock the door several times. The panel should move normally, close completely, and allow the latch and lock to engage securely.

Check that the new seal maintains light contact or controlled compression. It should not enter the track, catch on hardware, cover a drainage opening, or require the door to be forced.

If movement or locking becomes difficult, stop and correct the profile, orientation, or fit. Do not keep forcing the panel against an oversized seal.

When Weatherstripping Is Not the Real Problem

Replacement seals may not correct a gap caused by a panel that sits crooked, worn or uneven rollers, a bent track, a damaged threshold, a distorted frame, or structural movement.

A latch that does not pull the panel into its normal closed position can also leave the seal looking ineffective. Other possible problems include a loose stationary panel, missing door components, frame damage, or water-damaged materials around the opening.

A seal that contacts near the bottom but not near the top usually points toward alignment rather than uniform weatherstrip wear. Installing thicker material may hide part of the gap while making another part of the door bind.

Roller adjustment, panel removal, track repair, and frame correction require separate evaluation and are outside a basic weatherstripping replacement.

When the gap may involve panel alignment, rollers, the lock, or the frame instead of the seal itself, this guide to sliding glass door drafts explains how to identify the likely cause.

Protect Tracks, Drainage, and Door Operation

Sliding-door assemblies may contain roller channels, weep openings, drainage paths, adjustment access points, and spaces needed for servicing the door.

Keep these areas unobstructed

• Do not fill the track with caulk, spray foam, or loose seal material.
• Do not cover weep holes or bridge drainage channels.
• Do not place adhesive tape where rollers or guides travel.
• Do not permanently seal joints that must move.
• Do not cover locks, latches, fasteners, or adjustment openings.
• Do not add material that prevents normal or emergency operation.

The goal is to reproduce the original sealing function, not redesign the door. When the original arrangement is unclear, pause until the correct seal location and profile can be identified.

For more examples of openings and moving areas that must remain clear, review this guide on where not to caulk around windows.

Common Mistakes

Common errors include buying material before examining the original profile, measuring only its overall thickness, and ignoring the backing or channel width.

Other mistakes include replacing fin-pile with ordinary pile, installing a flap backward, stretching adhesive weatherstripping, leaving gaps at corners, and using thick foam tape around the entire door.

Never allow replacement material to enter the track or cover drainage and service points. If the door no longer closes or locks normally, do not force it or assume the new seal will “wear in.” Recheck the fit.

Safety and When to Call a Professional

Stop and arrange professional service when the glass is cracked, loose, shifting, or unstable, or when the moving panel feels as though it could leave the track. Heavy sliding panels can be difficult to control and should not be lifted for access to a hidden seal.

Professional evaluation is also appropriate when the stationary panel or retainers must be dismantled, the correct profile cannot be identified, or the door cannot open, close, lock, or remain secure.

Call for help when rollers, tracks, locks, frames, or thresholds require repair; when rainwater enters the home; or when nearby trim, walls, or flooring are soft, rotten, warped, or widely stained. Widespread mold, concealed moisture, a severely out-of-square opening, and possible structural movement also require broader investigation.

Do not disturb questionable older coatings. Lead-based paint or another hazardous material may require special testing and work practices. Security and emergency-exit concerns should be addressed promptly rather than delayed for a weatherstripping experiment.

Final Thoughts

A successful replacement starts with identifying the original seal and matching its profile, dimensions, orientation, and attachment method. The finished strip should make consistent contact while allowing the patio door to slide, close, latch, and lock normally.

Limit beginner work to accessible seals that can be removed without lifting glass or dismantling the door. Protect tracks, drainage openings, hardware, and service points throughout the job. When the gap is uneven or the panel is unstable, difficult to operate, or affected by water or frame damage, professional service is the safer next step.
